Products Description

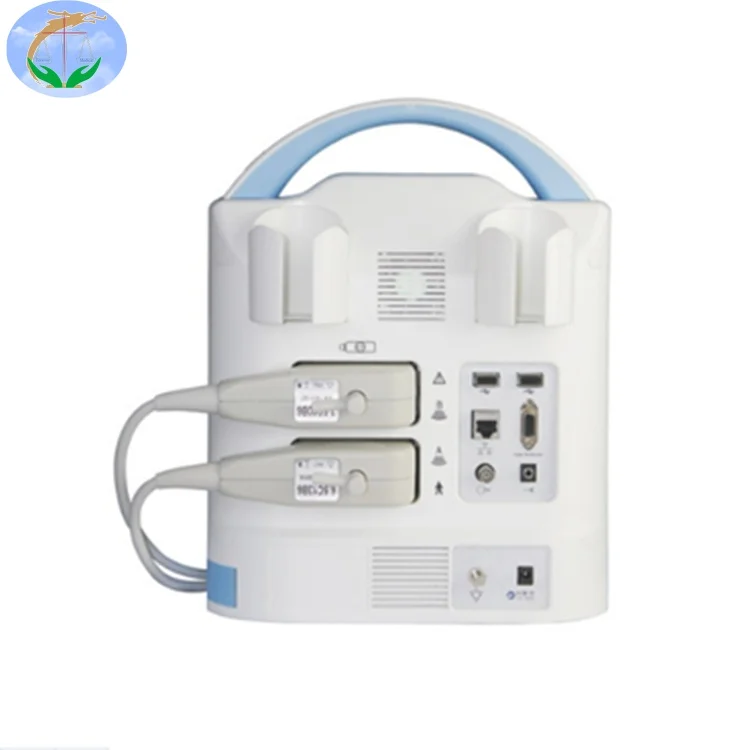

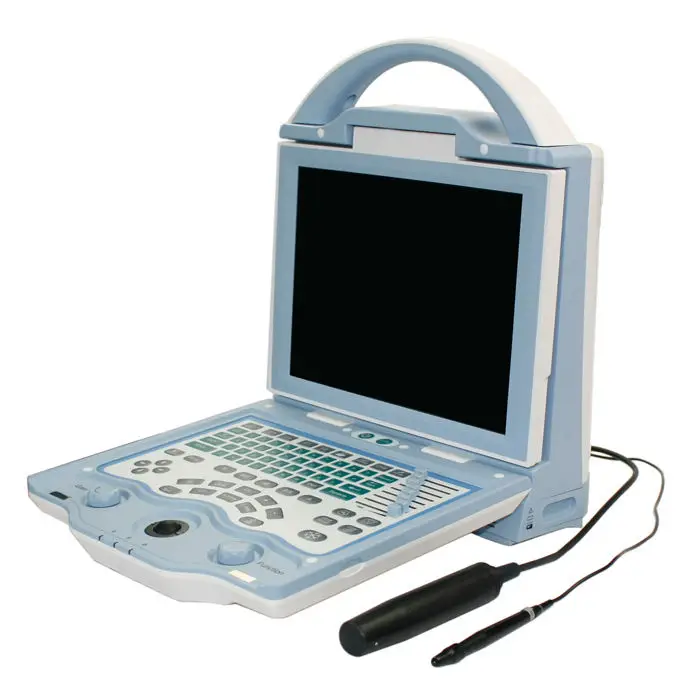

YJ-U5600 Human Ultrasound Scanner(New Portable LED Model)
YJ-U5600 new weight of main unit is 4.5 kg and light convenience for carrying.
Equipped with a 10.4' adjustable LED screen and one-key image transfer to PC, this ophthalmic AB scan ultrasound machine features a built-in 16GB storage disk, DICOM3.0 network port, and supports multiple IOL formulas. It ensures high precision with ±0.1mm accuracy and offers versatile measurement modes for ACD, lens, vitreous body, and axial length.
Detailed Pictures
RAQ
Q: 1. What kind of medical equipment does your company specialize in?
Q: 2. Which countries or regions do you export to?
Q: 3. What is your shipping method and delivery time?
Q: 4. What payment methods do you accept?
Q: 5. May we have a tour of your factory?
Q: 6. Do you provide after-sales service?
Q: 7. Can you provide customized solutions for medical devices?
Q: 8. What is your price range for medical equipment?
Q: 9. How can we guarantee the authenticity of your products?
Q: 10. What is your target market for medical devices?
Contact Information
Tel: +8618237112626
Phone: +8618237112626
Email: forermed@yjcompany.com
Address: Wanda Center, Jinshui District, Zhengzhou, Henan, China
Whatsapp: +8618237112626
Skype: live:.cid.f4a1b4801c7fee8
Wechat: +8618237112626
Hot Tags: black and white ultrasound diagnostic system, China, suppliers, manufacturers, factory, low price
|
A scan parameter |
|
|
Resolution |
0.01mm |
|
Gain adjustable |
0-120dB |
|
Measurement range |
12-43mm (1640m/s) |
|
Accuracy |
±0.02mm |
|
Eye mode |
normal / aphakia / dense cataract / PMMA, Acrylic & Silicon for Pseudo Phakic eyes |
|
Measuring Mode |
Contact and Immersion, automatic and manual |
|
Measurement methods |
A single-point measurement (under A mode); five-point measurement (under A mode) |
|
Calculation |
std. deviation, average, automatical measuring 8 groups and average, accompany waveform, |
|
IOL Formula |
SRK-II, SRK-T, BINKHORST, HOLLADAY, HOFFER-Q, HAIGIS |
|
B scan parameter |
|
|
Scan mode |
High accuracy stepping motor drive sector scan |
|
Scan Angle |
53° |
|
Display Depth |
0~56mm |
|
Gray |
256 |
|
Depth seletion |
8 |
|
Frame correlation |
4 |
|
Edge enhancement |
4 |
|
Post-processing |
8 |
|
Image storage |
100 frames permanent image storage |
|
General Measurement |
multi-electronic-rule to measure distance, circumference, area (trace method, ellipse method), |
