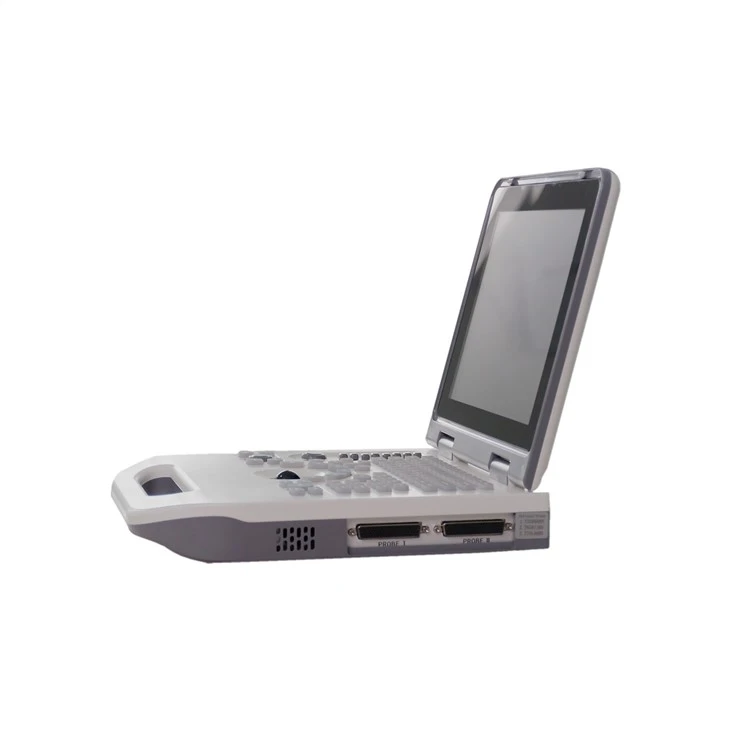

YJ-X50 Full Digital Laptop Ultrasound
Features:
1. Mass memory , cine loop and permanent storage.
2. Radium Caved buttons and Silicon backlit buttons to be chosen;
3. Intelligent fluorescence trackball.
4. 8-segment TGC control. Overall Gain control
5. 2 USB ports , Upgraded and expandable printer function;
6. 2 probe connectors. Probe automatic identification;
7. 2 SVGA video outputs and 21 PAL video outputs offer connection to video image recorder and image workstation. etc.
8. Report page is generated automatically.
9. According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this
parameter. This default of parameter can aslo be modified in the menue.
Standard Configuration:
1.One host machine
2.One convex array probe:F=3.5MHZ
3.One power adapter
4.USB port
Laptop . | |
12.6〞 LED Player. | |
Backlight Key. | |
Lithium battery. | |
Main Parameter | Display modes: B, B/B, 4B, B+M, M. |
Gray scale: 256 levels. | |
Dynamic range: 0~120dB adjustable. | |
External LED display have 16 kinds of pseudo color. | |
Permanent storage: 128 images . | |
Capacity cine loop: real time display 256 consecutive images which are memorized successively. | |
Gain control: 8 segments TGC and overall gain can be adjusted respectively. | |
Frequency conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion; frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe. | |
Image multiplying factor:3.5MHz/R60 convex array probe: ×0.8, ×1.0, ×1.2, × 1.5， ×1 .8, ×2.0 (six modes)×0.8, ×1.0 (display penetration depth). | |
E-zoom: magnify 2 times of real time image. | |
Focus position: dynamic electron focusing. | |
Output Interface | 1 groups of USB video output 1 groups of SVGA video output may mate with SVGA color monitor.1 groups of PAL video output may mate with PAL monitor, video image recording instrument and image workshop, etc. |
USB Port:our machine can connect the common printer . Used to print the measurement report page. |
