2D B/W Notebook Ultrasound System Scanner
Introduction of Full-Digital Laptop Ultrasound Scanner YJ-580：

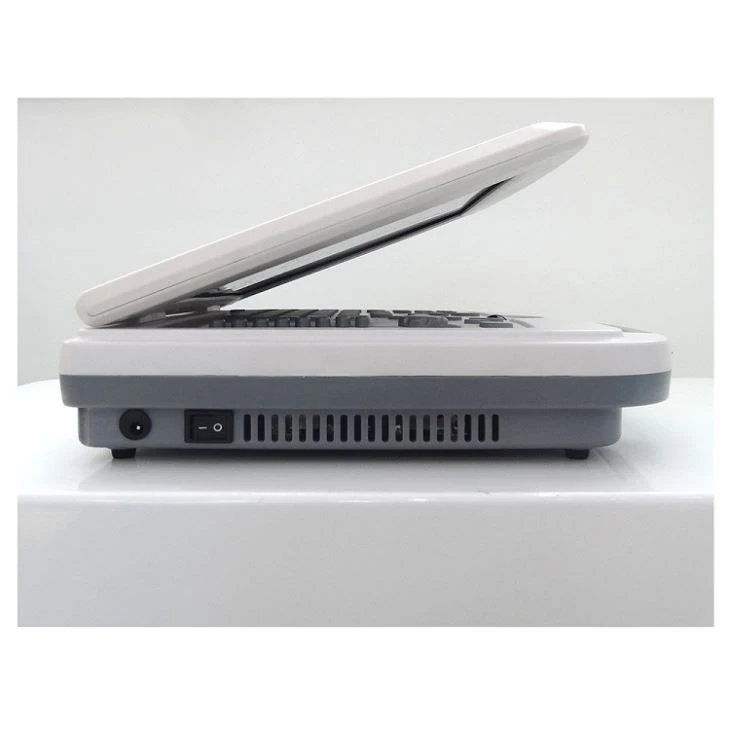

Full-Digital Laptop Ultrasound Scanner YJ-U580 is light and portable, with much clearer image and convenient to operate. YJ-U500 has an extra-long battery life with over 8 hours of standby time and 4 hours of working time - useful for consultation in various environment of cities, towns, outdoor. A variety of charging to ensure the examination consultation under different environments. That is applicated to abdomen, obstetrics and gynecology, pediatrics, urology, small organs, musculoskeletal and so on.
Note:
1,Two years quality guarantee and 24 hours phone service for all the products supplied.
2,Training Service Supplied!
Specifications of Full-Digital Laptop Ultrasound Scanner YJ-580：
| Core feature of YJ-U580: |
12.1- inch HD LCD display |
Rechargeable battery |
THI and Histogram function |
Support language: Chinese/English/Spanish/French/Portuguese/Russian/ |
Support OB Report |
Basic parameters of Full-Digital Laptop Ultrasound Scanner YJ-U500: | |
Probe Depth | 16 levels |
Probe Frequency | 5 levels |
Main gain | 0-100% |
8TCG | adjustable |
Focus | 4 |
Image storage | 4920 images |
Pseudo color | 0-7 |
Scanning area(angle) | 3 levels |
Edge enhancement | 0-3 |
Linear correlation | 0-5 |
Gamma correction | 0-7 |
Frame correlation | 0-3 |
Dynamic range | 0-135 |
Cine loop | 512 frames |
Body mark | 97 kinds |
U Disk support | FAT32 format |
Image reversal | up/down, left/right, black/white |
Measurement | General measurement, GYN & OB measurement package, Andrology measurement, Cardiac measurement |
OB-1 | GS,BPD,CRL,FL,HL,TAD,LV,OFD,AC,HC,AFI |
OB-2 | FTA,TTD,APTD,THD,TCD,CI,EFW,Input LMP,Growth Curve |
Features of Full-Digital Laptop Ultrasound Scanner YJ-580：
Various Probes
(96 elements):
Convex probe (2.0 - 5MHz)
Linear probe (5.5 - 9.0MHz)
Trans-vaginal probe (5.0 - 8.5MHz)
Micro-convex probe (4.0 - 7.0MHz)
Probe frequency:
Convex probe
Frequency: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5MHz
Depth: 16 level 【126,142,158,173,189,197,205,213,221,229,237,245,253,261,269,307mm】
Linear probe
Frequency: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz
Depth: 16 level 【35,42,49,62,69,76,83,90,97,104mm】
Trans-vaginal probe
Frequency: 5.0MHz,5.5MHz,6.5MHz,7.5MHz,8.5MHz
Depth: 16 level 【62,69,76,83,90,97,104,111,125,139mm】
Micro-convex probe
Frequency: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz
Depth: 16 level 【62,69,83,97,111,125,139,152,166,180mm】
