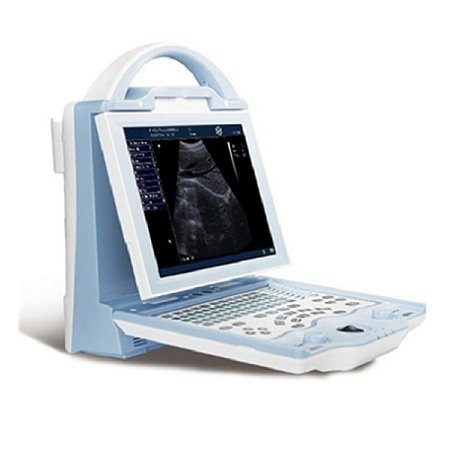

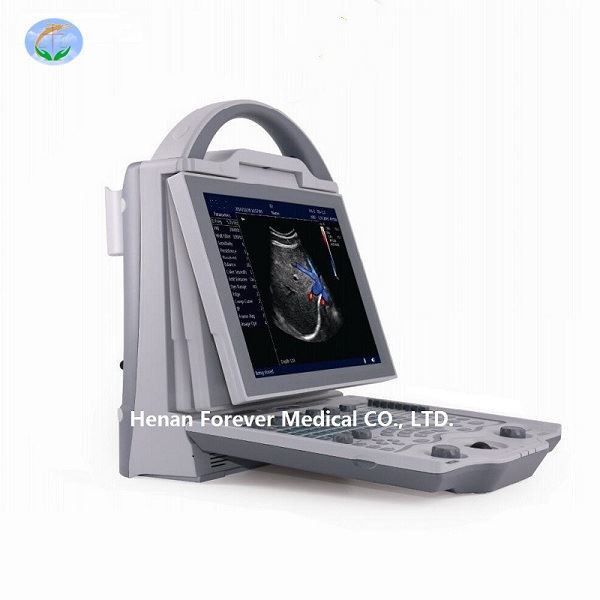

YJ-U5600 Human Ultrasound Scanner
Tech Parameters：
l 10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle；
l Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable.
l Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese；
l Two probe sockets, auto-identify different optional probe；
l Body marks：total 64 kinds body marks indicating probe position；
l Display mode：B、2B、4B 、B/M、M ；
l Adjustable depth: 10 grades, max depth to 236mm；
l Gain：0～127dB；
l Contrast：27～90dB；
l Gray scale：256；
l 8 steps intelligent TGC；
l Frame frequency: 30 frames /second
l 8 kinds pseudo colors；
l Image storage: 4G hard disk to permanently store about 5000 frames images；without loss when power off.
l Cine loop：256 frames；
l Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position)；
l the gravel software package with real-time position line measurement
l Normal measurement: distance、perimeter, area, volume, angle, length and area stenosis ratio measurement.
l Cardio measurement：Depth, slope, heart rate, cycle；
l Gynecology measurement and analysis: gynecology general measurement and gynecology report.
l OB measurement including: 15 kind of obstetric software, several GA measurement, amniotic fluid index ,fetal growth curve and OB report.
l Urology measurement and analysis: residual urine volumem, prostate volume, and urology report .
l One-key store: concise and practical;
l One-key review：fast, practical image review function;
l One-key Print；
l One-key Transfer the current frozen image to net workstation to complete its image text report and print directly;
l Concise and practical, easy operation. The system includes network workstation to complete data & report management (You don’t need to invest more to buy extra ultrasound working station)；
l Unique One-key-light keyboard function for black room use;
l Display brightness adjustable；
l Dual TV output: PAL/NTSC, can connect video printer when necessary；
l Power supply：100-240V～ 1.2-0.6A frequency：50-60Hz；
l Power supply adaptor output：DC12.8V 3.0A；
l Main unit weight：4.5kg（without accessories）；
l Main unit dimension：256×150×326mm（L×W×H）；
Main basic configuration：
l Main unit 1pc；
l 3.5MHz convex probe 1pc；
l Power supply adaptor 1pc；
l Reticle 1pc;
l Two probe sockets
Optional parts：
l Optional probes
6.5MHz multi-frequency trans-vaginal probe(through vagina)
6.5MHz micro-convex probe for small animals
7.5MHz multi-frequency linear probe
7.5MHz multi-frequency cavity probe (through anus)
l Battery charger
l Li-battery: HYLB-1614 11.1V-4400mAh 48.84Wh
l trolley
l Video printer（UP-897MD）
l Ethernet Switch
