YJ-BW50  Digital X Ray Imaging System

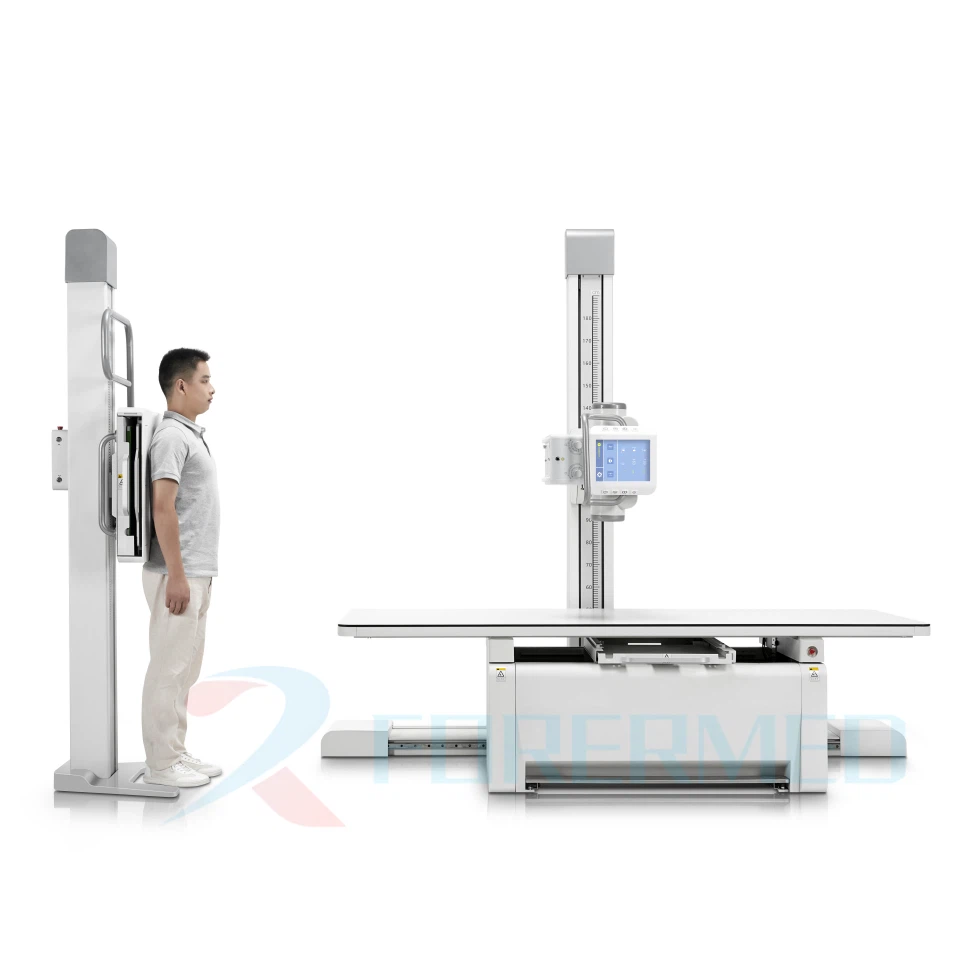

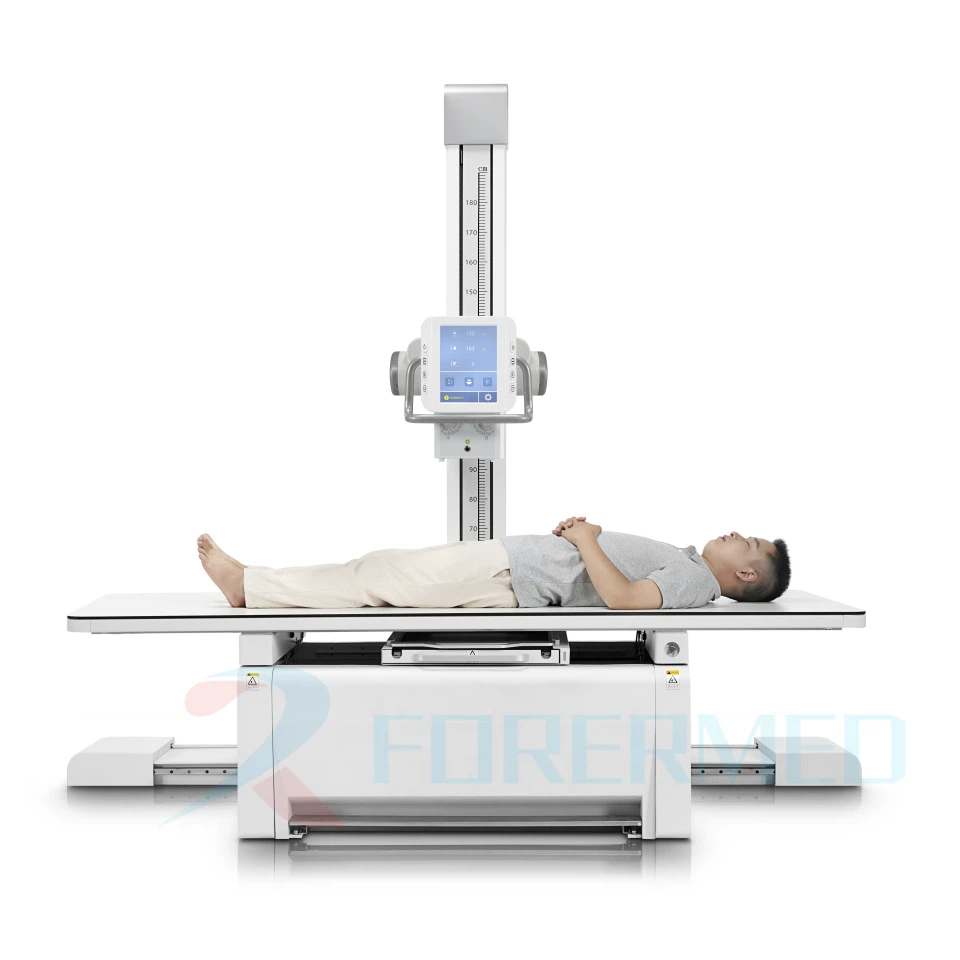

Floor-mounted Digital Radiography System



 Digital X Ray Imaging System

YJ-BW50 50kW 630mA Floor-mounted Digital Radiography System

YJ-BW-50 adopts the industry's advanced direct growth needle cesium iodide amorphous silicon flat panel detector, high frequency and high voltage generator with a frequency of 400KHz, high thermal capacity X-ray tube assembly and intelligent electric photographic bed mechanism combined with multi-function image acquisition system.

The whole machine adopts ergonomic design, simple and atmospheric structure, beautiful and comfortable shape, and has excellent operating experience.


Application :

X-ray Room Radiography Department



Integrated high voltage generator control system improves radiological imaging efficiency and quality



The high voltage generator control is fully integrated with the image acquisition workstation, and the maximum 630mA photographic tube current achieves sharp picture quality, which is widely applicable to various photographic objects.

Its image acquisition system can easily complete the Kv, mAs and up to more than 1000 APR (location program photography) control of different parts of the photography conditions, intuitive inspection site selection, clear shooting position list and parameter Settings, to help doctors quickly and accurately complete the shooting work.

The excellent and stable image acquisition system not only guarantees the excellent image quality, but also ensures the efficiency of the doctor's work.

With the support of its exquisite technology, there is a supporting remote diagnosis technology as the auxiliary software function of real application and operation.







product key technologies
 Digital X Ray Imaging System
01.

"Intelligent operation, adaptive exposure

high frequency and high voltage stable output, simplified positioning."



Programmable motion control system, one key to follow, intelligent operation, cow head touch PAD, can directly set the exposure parameters between the operation, adaptive exposure system, no manual selection of exposure trajectory, simple and direct operation simplifies the positioning process.



The digital image acquisition system adopts a high-frequency high-voltage generator with a frequency of 400KHz to ensure a stable high-voltage output.

02.

"Intelligent exposure technology ensures image quality and reduces radiation damage"

The production of soft X-rays is greatly reduced, which not only guarantees excellent image quality, but also greatly reduces radiation damage to doctors and patients. The body weight of different patients is completely different.



If the same exposure trajectory is used for exposure, the images taken will inevitably be deformed and distorted.



The automatic exposure photography developed by our company can accurately and automatically control the X-ray quantity according to the thickness, physiological and pathological characteristics of the photographed body, so as to ensure the appropriate sensitivity and make the image quality relatively stable.








 Digital X Ray Imaging System

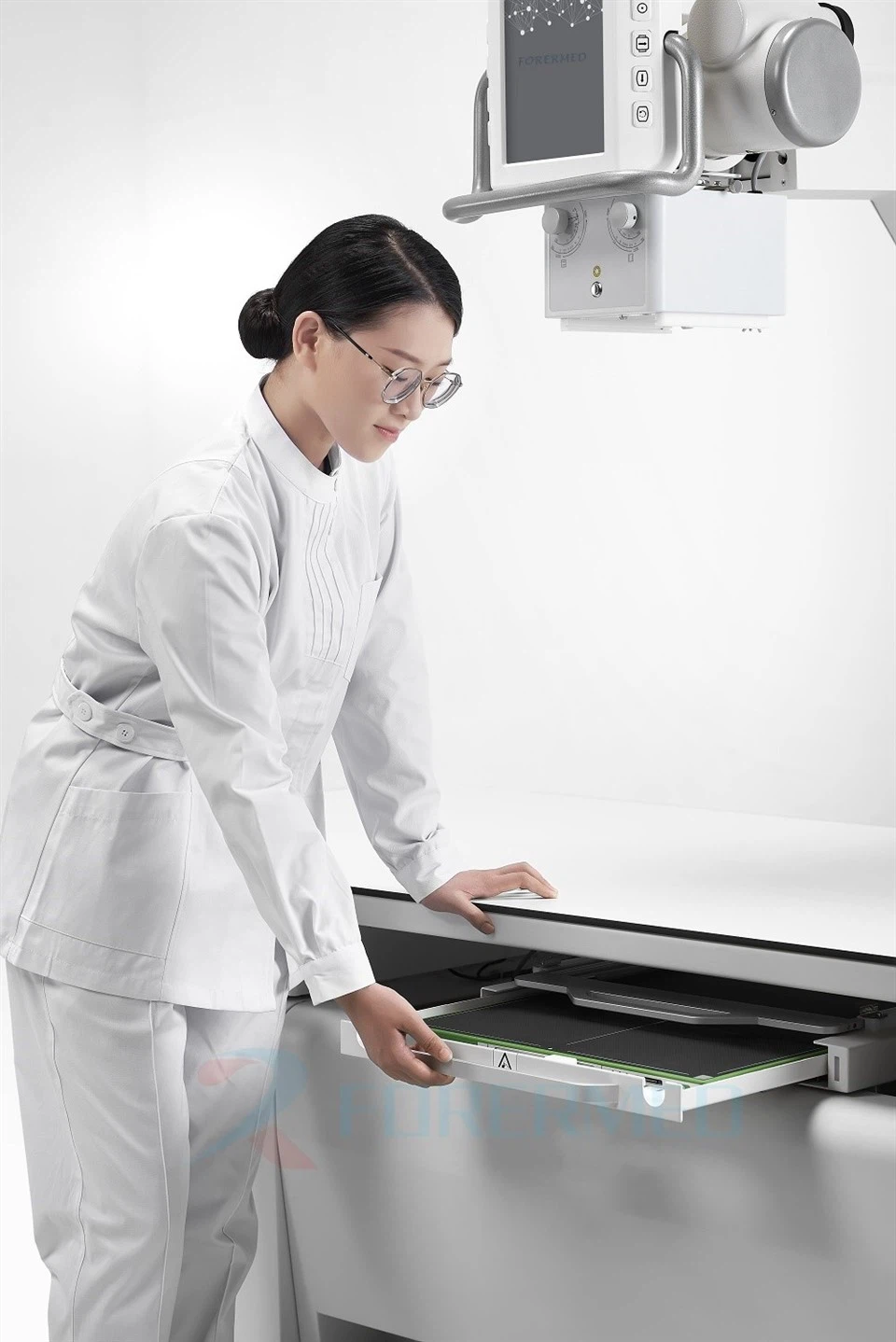

Detailed Pictures





Digital X Ray Imaging System



Digital X Ray Imaging System

RAQ

Q: 1. What kind of medical equipment does your company specialize in?

A: - Our company specializes in various medical equipment, including but not limited to medical ultrasound scanners, laboratory equipment, ICU equipment and surgical instruments, dental equipment, medical sterilizers, etc.

Q: 2. Which countries or regions do you export to?

A: - Our medical devices are exported worldwide, mainly in North and South America, Europe, Africa and Southeast Asia markets.

Q: 3. What is your shipping method and delivery time?

A: - We offer a variety of transportation options to meet the needs of our customers, including express, air, sea and land. Delivery times vary depending on the destination and the mode of transport chosen.

Q: 4. What payment methods do you accept?

A: - For your convenience, we accept various payment methods, including wire transfer, credit card and PayPal.

Q: 5. May we have a tour of your factory?

A: Of course, we welcome potential customers to visit our factory. Please contact us to arrange a visit.

Q: 6. Do you provide after-sales service?

A: - Yes, we provide comprehensive after-sales service, including product training, repair and technical support.

Q: 7. Can you provide customized solutions for medical devices?

A: - Yes, we have a dedicated team that can provide you with tailor-made solutions to meet your specific requirements.

Q: 8. What is your price range for medical equipment?

A: Our prices are competitive and vary according to the product and quantity ordered. Please contact us for a detailed quote.

Q: 9. How can we guarantee the authenticity of your products?

A: - All our products have CE, ISO, FDA and other certificates.

Q: 10. What is your target market for medical devices?

A: Our target markets include hospitals, clinics and medical institutions around the world, with a particular focus on emerging markets where demand for high-quality medical devices is high.

Q: 1. What kind of medical equipment does your company specialize in?

A: - Our company specializes in various medical equipment, including but not limited to medical ultrasound scanners, laboratory equipment, ICU equipment and surgical instruments, dental equipment, medical sterilizers, etc.

Q: 2. Which countries or regions do you export to?

A: - Our medical devices are exported worldwide, mainly in North and South America, Europe, Africa and Southeast Asia markets.

Q: 3. What is your shipping method and delivery time?

A: - We offer a variety of transportation options to meet the needs of our customers, including express, air, sea and land. Delivery times vary depending on the destination and the mode of transport chosen.

Q: 4. What payment methods do you accept?

A: - For your convenience, we accept various payment methods, including wire transfer, credit card and PayPal.

Q: 5. May we have a tour of your factory?

A: Of course, we welcome potential customers to visit our factory. Please contact us to arrange a visit.

Q: 6. Do you provide after-sales service?

A: - Yes, we provide comprehensive after-sales service, including product training, repair and technical support.

Q: 7. Can you provide customized solutions for medical devices?

A: - Yes, we have a dedicated team that can provide you with tailor-made solutions to meet your specific requirements.

Q: 8. What is your price range for medical equipment?

A: Our prices are competitive and vary according to the product and quantity ordered. Please contact us for a detailed quote.

Q: 9. How can we guarantee the authenticity of your products?

A: - All our products have CE, ISO, FDA and other certificates.

Q: 10. What is your target market for medical devices?

A: Our target markets include hospitals, clinics and medical institutions around the world, with a particular focus on emerging markets where demand for high-quality medical devices is high.
Contact Information

Tel: +8615290808151


Phone: +8615290808151


Email: judy@yjcompany.com


Address: Wanda Center, Jinshui District, Zhengzhou, Henan, China


Whatsapp: +8615290808151


Skype: live:.cid.f4a1b4801c7fee8


Wechat: +8615290808151











Hot Tags: digital x ray imaging system, China, suppliers, manufacturers, factory, low price

High voltage generator

Output nominal power

50KW

Maximum tube current

630mA

Tube voltage range

40-150KV

Current time product

0.1-630mAs

Inverter frequency

400KHz

X-ray tube assembly

Maximum tube voltage

150KV

Anode heat capacity

400KHU

Focal size

0.6/1.2mm

Flat panel detector

Effective photographic size

17" X 17"

Pixel size

≤135 um

Total pixel count

9.4 million

Pixel gray scale

16bit

Imaging time

≤5 S

With AEC function

Automatic exposure control (AEC) function

Light Beam

Max X-ray area

43cm×43cm (SID1.0M)

Light field brightness

≥160Lux

Camera frame system

Total height of photo frame column

2200mm

Longitudinal movement range of bed surface

930mm

Lateral movement range of bed surface

260mm

Bed size

L 2200mm,W 800mm,H 650mm

Bed surface locking mode

Permanent magnet design, power lock, power release

load-bearing

≥200kg

One-click alignment

The column of the bulb tube and the chest X-ray frame have the function of one-key alignment


follow-up

Tube column and chest X-ray frame electric follow-up, tube column
Mechanical linkage with bed bucky

Electrokinetic motion

Tube column vertical direction, tube column horizontal direction,
The chest X-ray frame is vertically oriented and has electric motion function

Tube assembly column rotation range

360°

autobit

One-click automatic bit, SID1 m, SID1.8 m,
One click flat bed

Image acquisition workstation

CPU main frequency

≥3.5GHz

Memory capacity

≥4GB

Hard disk capacity

≥500GB

Display size

19 inch LCD display

Display point spacing

≤0.294mm

Maximum brightness of display

≥250(cd/m2)

Host console

The host console is highly integrated with the high voltage generator
The exposure parameters are set directly on the host workstation

NO.

Configuration Item

Remark

1

Electric double post bed body

1 SET

2

Electrophotographic column

1 SET

3

High voltage cable

2

4

Light beam

1 SET

5

50KW high voltage generator

1 SET

6

X-ray tube assembly

1 SET

7

Cesium iodide amorphous silicon flat panel detector

1 SET

8

Image acquisition workstation

1 SET
