High Frenquency Mobile Digital x ray Equipment
This unit is high frequency combined digital X-ray radiography medical diagnostic equipment, it is used in radiography department, orthopedics, wards, emergency room, operation room, ICU, etc. It can satisfy the requirement of parts of body such as head, limbs, chest, spine, lung, stomach.
Packing Details: (2 wooden cases)
Packing Dimension(mm) | NW(Kg) | GW(Kg) | |
1 | 1700*1000*2260mm | 505 | 692 |
2 | 760*750*660mm | 10 | 55 |
Specification
Type | Item | Spec | |
High frequency X-ray | Max output power | 25kW | |
Main Inverter Frequency | 60kHz | ||
X-ray tube | Focus | 0.6/ 1.3mm | |
Rotation anode speed | 3000rpm | ||
Heat capacity | 900kJ (1200kHU) | ||
Tube current | 200mA | ||
Tube voltage | 40-125kV | ||
mAs | 0.4-360mAs | ||
Digital image system | Digital detector | Detector | Amorphous silicon detector |
scintillator | Cesium Iodide | ||
View | 14″×17″ | ||
Pixel | 3K×3K | ||
Max spatial resolution | 3.5Lp/mm | ||
Pixel size | 144μm | ||
Output gray-scale | 16bits | ||
DQE | 66% | ||
Workstation | Acquisition module | Gigabit nets collection | |
Image processing model | Built-in international advanced Enhance module | ||
Image information management | Dicom Storage | ||
Physical construction | Distance from floor to focus | Max:195cm; Min:80cm | |
Distance from focus to pillar | Max:125cm; Min:75cm | ||
X-ray Tube components can rotate around the telescopic boom axis | ±90º | ||
Collimator rotate around vertical axis | ±90 | ||
Rotation range of pillar | ±180 | ||
Power supply | 220V 50/60Hz | ||
Standard Configurationt
No. | Item | Quantity |
1 | High frequency and high voltage Combined X-ray generator | 1 |
2 | Portable flat panel detector | 1 |
3 | High quality IPC | 1 |
4 | Newly designed mobile pillar frame | 1 |
5 | Symmetric adjustable, wireless ranging rotatable collimator | 1 |
6 | Electric assistance drive system | 1 |
7 | Cable exposure hand brake | 1 |
8 | Wireless remote control exposure device | 1 |
9 | Parts | 1 |
Features
1.X-ray generator:
1)25KW compact x-ray generator;
2)High frequency of 60Khz;
3)With high technology to reduce the radiation;
2.Unique Power supply way:
1)Supers capacitor to supply power in photography and durable life;
2)Li-Battery to supply power in mechanical movement;
3.Mechanical movement:
1)The horizon arm can be contracted freely;
2)The pillar has the electronic up and down movement; and be rotated 360 degree;
3)X-ray tube is rotary and moves left and right with 90 degree;
4)Collimator can be rotated left and right with 90 degree;
5)Comprehensive integration control drive
Software:

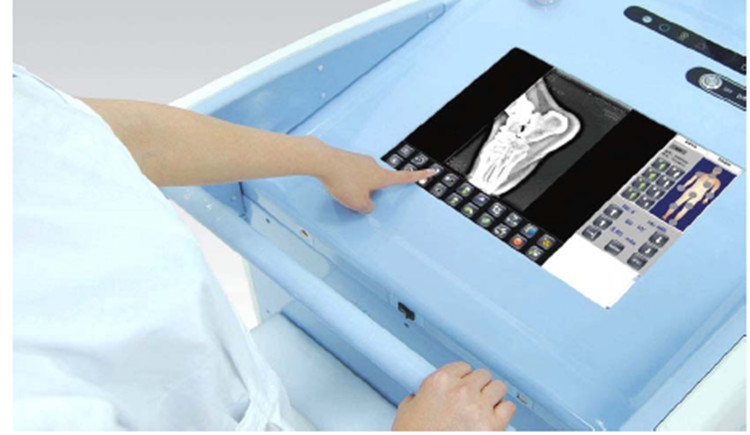

LCD touch screen operation panel to control the machine conveniently;
