4tubes one vaporizer Multifunctional Anesthesia machine
Introduction:
Pneumatically driven and electrically controlled system
Built-in ventilator, 5.4” LCD display screen
Closed; Semi-Closed; Semi-Open wotking mode
Applied for Adult and Pediatric
Main technical specifications:
Gas requirement: Medical oxygen and nitrous oxide with a pressure ranging from O2 & NO2: 0.32~0.6 MPa.
4-tubes Flowmeters, O2 & N2O; 0.1L/Min ~ 10L / Min; Oxygen Flush: 25~75 L / Min
Respiration Mode: A/C,IPPV,SIPPV,IMV,SIMV,MANUAL
Tidal Volume: 0~1500ml
I/E Ratio: 4:1 ~ 1:10
One vaporizer: Enflurane/ Isoflurane/Sevoflurane/Halothane
Vaporizer Setting Range: 0.5%~5%
Respiration Frequency : 1~99 bpm;
Ptr: -1.0kPa ~ 1.0 kPa

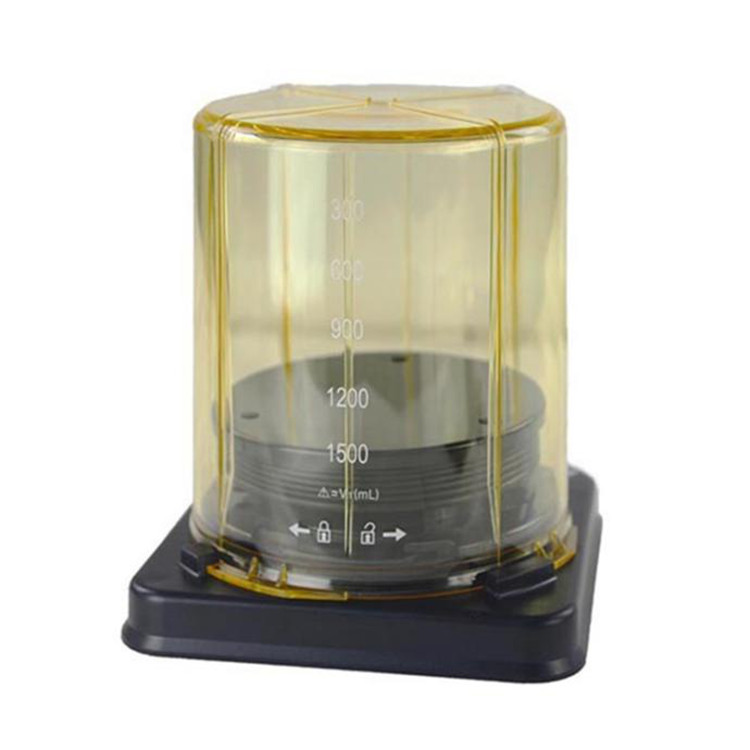

CO2 absorber capacity : 1 kg
Optional: Patient monitor
Alarm parameters: upper/lower limit of airway pressure,tital volume exceed limitation,no tidal volume output,apnea,AC power malfunction,Battery low power.
WARRANTY:
This equipment will be enjoyed 1 year warranty according to the international standard .We will responsible for repairing it or replace the related accessories free of charge if any malfunction happened for the equipment's own quality problem from the date of purchase.
Please contact us if you need further information for this model!
