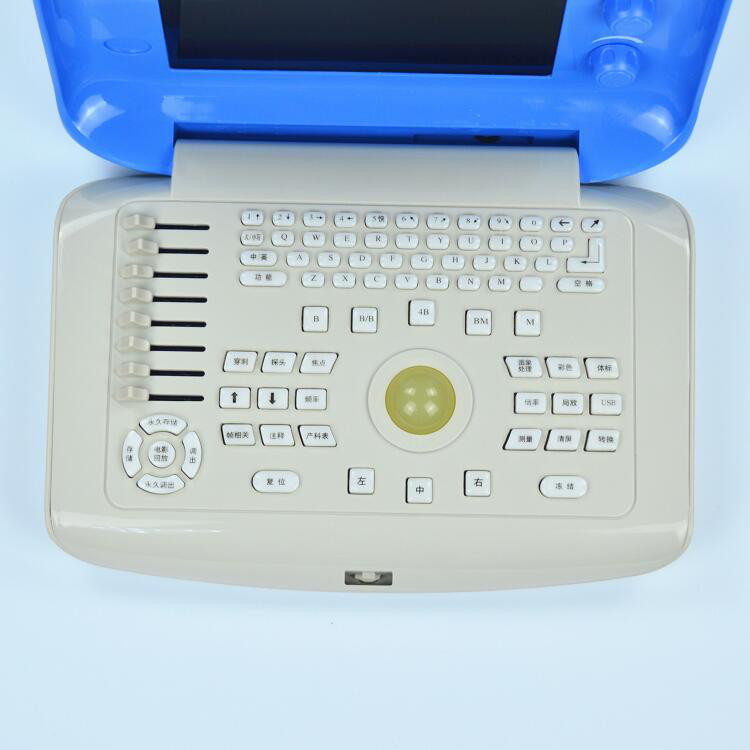

Digital 2D B/W Portable Ultrasound Scanner
Simple information YJ-U100D：
1.Powerful measurement &calculation software packages
2.8-Segment TGC ABD Trackball adjustment
3.12 inch LCD monitor
4.Permanent function of image store: 32 images Back-lit keyboard
5.OB measurements: BPD, GS, CRL, FL, AC, HC, etc 2 probe connectors
6.Probe automatic identification
ltrasonic Diagnosis Equipment is on the basis of different density and ultrasonic transmission speed, and different acoustic impedance (product of media density and velocity of sound), to regular electric impulse actuate piezoelectric wafer (transducer), ultrasonic at some frequency is produced, injecting the ultrasonic (sound wave) into human body, reflection echo will be produced via different viscera’s interface, then the reflection echo can be absorbed by the transducer injecting such ultrasonic, when the transducer will convert the reflection echo (sound wave) to electric impulse, which after enlargement, examination and digital scanning, shall become standard video signal and display the intersection image of the organ on the screen of the monitor.
Operation functions of Equipment:
Four display format: B,B+B,4B,B+M,M; Image grey scale: 256 levels.
Freezing, real time, selective enlargement, upwards/downwards and left/right turnover of the image can be realized.
8 stage TGC adjustment.
18 types of body mark.
Full-screen character annotation.
Fixed character, real time clock and calendar.
Electron focusing, free combination of focus.
Various probe for choice, enough to meet requirement of clinical diagnosis.
Frequency Conversion: 2.0MHz – 8.0 MHz.
Image magnification: ×1.0,×1.2,×1.5,×2.0. the utmost depth of detection is 240mm.
Measuring: distance, perimeter, area, volume, pregnant weeks etc. Heart rate and slope can be measured under M mode.
Built-in DSTN Processor, PAL-D and VGA video transmission, external screen monitor, colorful screen, video tape recorder, video image printer etc.
Movie replay function, uninterrupted replay or step forward/backward replay for 256 images can be realized.
Having the function of “flash in”,“flash out”, “dream in”, “dream out” and “USB”.
With the optional function of 4 segments frame correlation.
