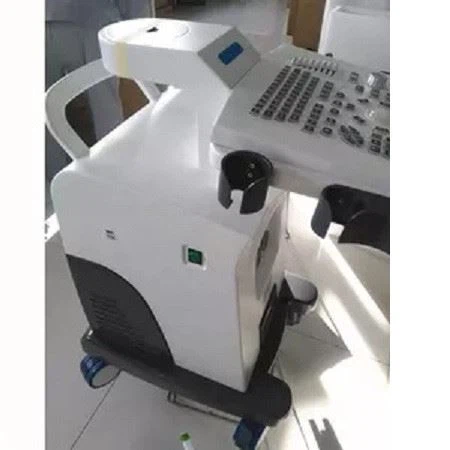

Trolley based B/W full digital ultrasound, with three probe connectors, much clearer image and convenient to operate.
* 15 inch HD LCD display
* Three probe connectors
* THI and Histogram function
* Support OB Report
* Support: Chinese/English/Spanish/French/Portuguese/Russian
Basic Parameters:
Probe Depth: 16 levels
Probe Frequency: 5 levels
Main gain: 0-100%
8 TGC: adjustable
Focus: 4
Image storage: 4920 images
Pseudo color: 0-7
Scanning area(angle): 3 levels
Edge enhancement: 0-3
Linear correlation: 0-5
Gamma correction: 0-7
Frame correlation: 0-3
Dynamic range: 0-135
Cine loop: 512 frames
Body mark: 97 kinds
U Disk support: FAT32 format
Image reversal: up/down, left/right, black/white
Measurement: General measurement, GYN & OB measurem ent package, Andrology measurement , Cardiac measurement
OB-1: GS,BPD,CRL,FL,HL,TAD,LV,OFD,AC,HC,AFI
OB-2: FTA,TTD,APTD,THD,TCD,CI,EFW,Input LMP,Growth Curve
Various Probes:
Convex probe (2.0 - 5MHz)
Linear probe (5.5 - 9.0MHz)
Trans-vaginal probe (5.0 - 8.5MHz)
Micro-convex probe (4.0 - 7.0MHz)
Probe frequency:
Convex probe Frequency: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5MHz
Depth: 16 level 【126,142,158,173,189,197,205,213,221,229,237,245,253,261,269,307mm】
Linear probe Frequency: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz
Depth: 16 level 【35,42,49,62,69,76,83,90,97,104mm】
Trans-vaginal probe Frequency: 5.0MHz,5.5MHz,6.5MHz,7.5MHz,8.5MHz
Depth: 16 level 【62,69,76,83,90,97,104,111,125,139mm】
Micro-convex probe Frequency: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz
Depth: 16 level 【62,69,83,97,111,125,139,152,166,180mm】
