Ophthalmic Ultrasound AB SACAN
We supply Ophthalmic A/B Scan for many years,we devoted ourselves to send you clients high quality Clinical Equipment with long terms services.
We are expecting to become your long-terms business partner in China.

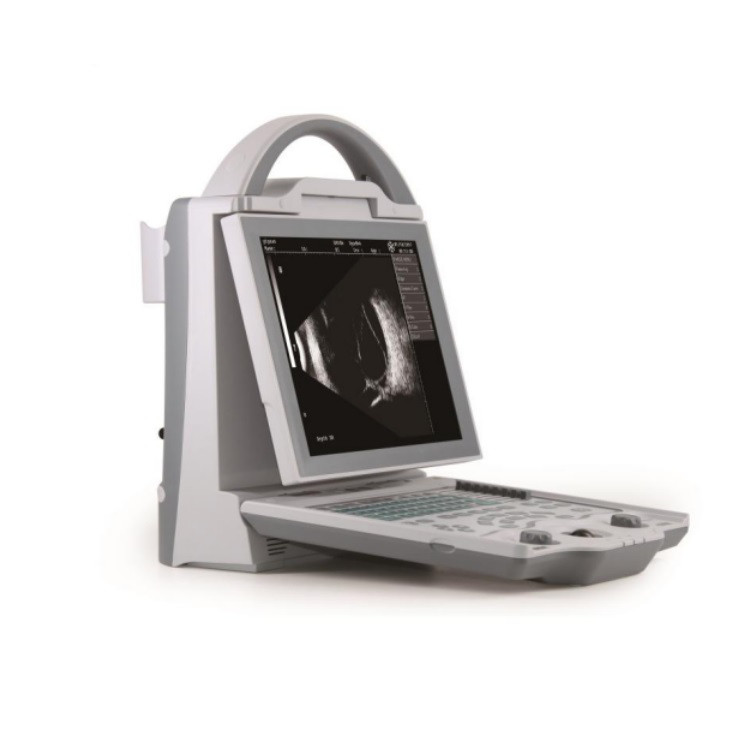

Introduction of Palm Ultrasound Scanner ODU5：
Due to the special anatomical structure of the eyeball, real-time three-dimensional reconstruction is required during the examination. The location of the lesion and the relationship between the lesion and the surrounding tissue can be determined.
Specifications of Palm Ultrasound Scanner ODU5:
A scan parameter:
| Resolution | 0.01mm. |
Gain adjustable | 0-120dB. |
Measurement range | 12-43mm(1640m/s). |
Accuracy | ±0.02mm. |
Eye mode | normal/aphakia/dense cataract/PMMA, Acrylic & Silicon for Pseudo Phakic eyes. |
Measuring Mode: | Contact and Immersion, automatic and manual. |
Measurement methods | A single-point measurement(under A mode); five-point measurement(under A mode). |
Calculation | std. deviation, average, automatical measuring 8 groups and average, accompany waveform, results correctable. |
IOL Formula | SRK-II, SRK-T, BINKHORST,HOLLADAY, HOFFER-Q, HAIGIS. |
B scan parameter:
| Scan mode | High accuracy stepping motor drive sector scan. |
Scan Angle | 53°. |
Display Depth | 0~56mm. |
Gray | 256. |
Depth seletion | 8. |
Frame correlation | 4. |
Edge enhancement | 4. |
Compression Curve | 4. |
Post-processing | 8. |
image storage | 100 frames permanent image storage. |
General Measurement | multi-electronic-rule to measure distance, circumference, area(trace method, ellipse method),volume (ellipse method), angle , histogram, profile , stenosis and curvature etc. |
Features of Palm Ultrasound Scanner ODU5：
1.Adopt ARM9 Embedded Control Systems, FPGA signal processing system and elaborate selected ultrasonic hardware system..
2.10.4 inch high resolution LCD screen.
3.Menu operation Language: Chinese/English.
4.Double probe sockets.
5.A mode probe: 10MHz, imported probe with fixation light.
6.B mode probe: 10MHz, imported transducer.
7.Display mode: B, B/B, 4B, B/A, A.
8.Gains range: 0--120dB.
9.Dynamic range: 30-100dB, visual and adjustable.
10.Gray: 256.
11.Intelligent TGC adjustment: 8 segments.
12.Build-in D disk: 4GB, save mass data, images, reports, etc.
13.Report function: print screen, IOL report, case report with picture, etc.
Standard Configuration of Palm Ultrasound Scanner ODU5
1 | Main unit: 1 pc |
2 | 10MHz mechanical sector B probe: 1 pc. |
3 | 10MHz A probe : 1 pc. |
4 | Network cable: 1pc |
5 | Foot switch:1 pc |
6 | Workstation software |
Optional Configuration:
| 1 | Large lithium battery 4400mAh |
2 | Video Recorder |
3 | Ethernet switch |
4 | Immersion Shell |
5 | Print Box |
FAQ：
Q:What is time of delivery?
A:Since our products are produced according to each specific order, the delivery period will be 15days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
Q:Turn on the power switch, the display does not respond, the indicator does not light.
A:Check whether the external power cable is plugged in, whether the socket voltage is normal, whether the power switch is in the on state, whether the fuse is burned out, and whether the switching power supply has related voltage outputs.
Q:What is payment terms?
A:T/T in advance, Western Union
Q:Which shipping company usually using?
A:MAERSK-LINE, PIL, COSCO, SAFMARINE, MARUBA, APL, CMA, CSAV, K-LINE, MSC, NYK, AND DHL, EMS, TNT, UPS FOR COURIER, buyer's option will be our priority, we will give suggestion according to the schedule and services.
Delivery:
